Use Formdrill with our new ”Mag drill” and take it with you in the field.
Hand drills are not suited for the Formdrill process.
They either don't have the spindle speed or motor power.
Generating the required axial thrust and remaining stable during
the Formdrill operation is also problematic.

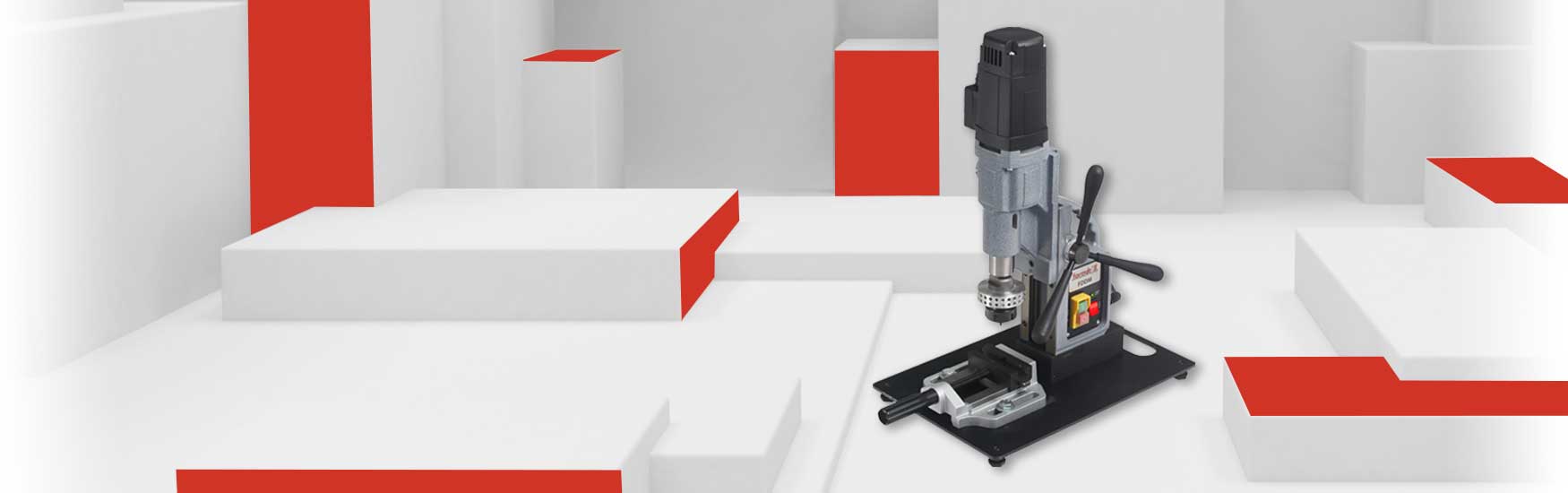

That is why we designed this portable magnetic drill.
The drill is manufactured to the highest quality standards and can be used
for applications up to M10 in 3.0mm. (7/16-UNC - 1/8NPT in 0.120" wall).

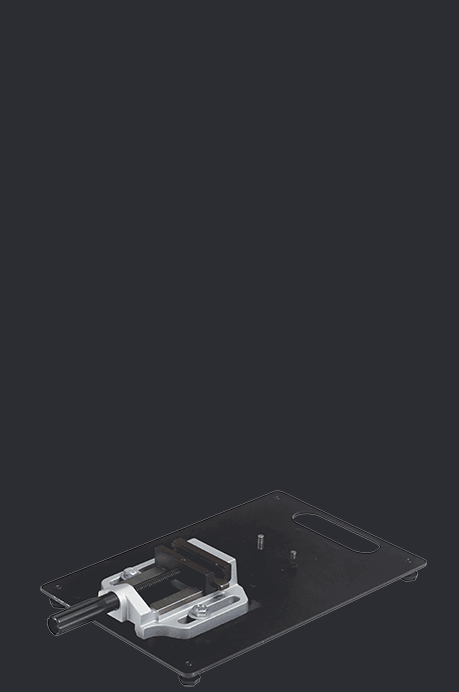

There is also an optional baseplate available with locating pins
and machine vise.
With this baseplate you turn the mag drill into a portable drill press
in just seconds.
- 2,800 Rpm. fixed speed
- 1600 Watt (220V or 110V)
- MT3 spindle
- Metal gears in oil bath
- Hardened dovetail guides
- Strong electro magnetic base
- Safety switch indicator light alerts the
possibility of non-secure magnetic operation
- Hardened rack and pinion
Mag drill is delivered with Formdrill tool holder, case, safety goggles, protective gloves, safety chain and hex adjustment keys.
Optional baseplate is delivered with 2 locating pins and movable machine vise.
